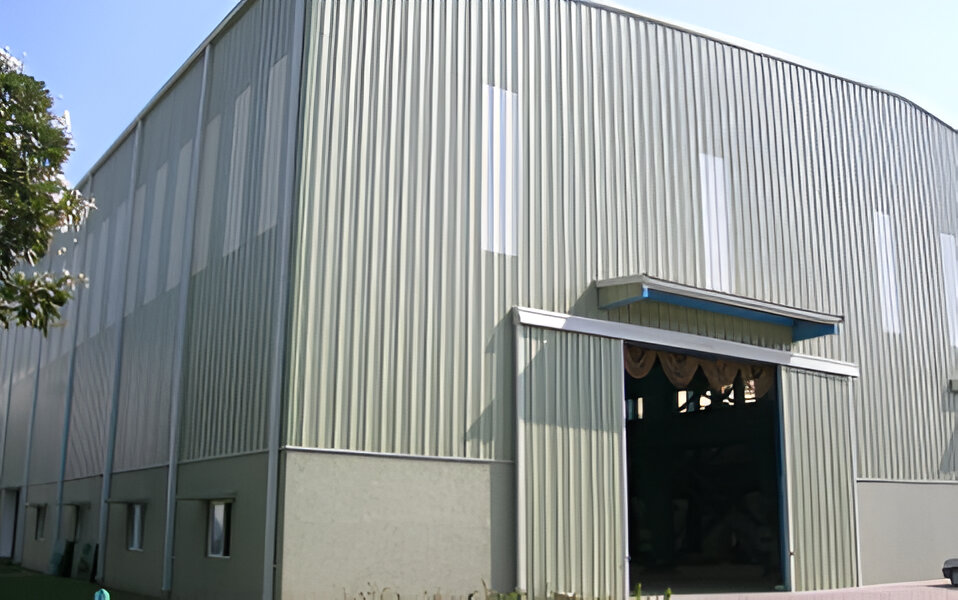

Sliding doors are used in hangars, warehouses, etc., where a larger opening into the building is required. They are not hinged but rather rollers are provided on top of the doors and this roller is placed on brackets allowing a sliding movement.
These windows are placed on the walls of a building and are double slide. They are moved by a sliding action controlled by guideways and the jab fins. Multiple windows can be formed by joining the jamb fins together. Standard size is 1m x 1m
These are the panels made from high pressure injected polyurethane foam and are meant for insulating a building. They are CFC-free, can withstand intense heat, contain extreme low temperatures. The panels provide excellent adhesion to the panel's sheeting.

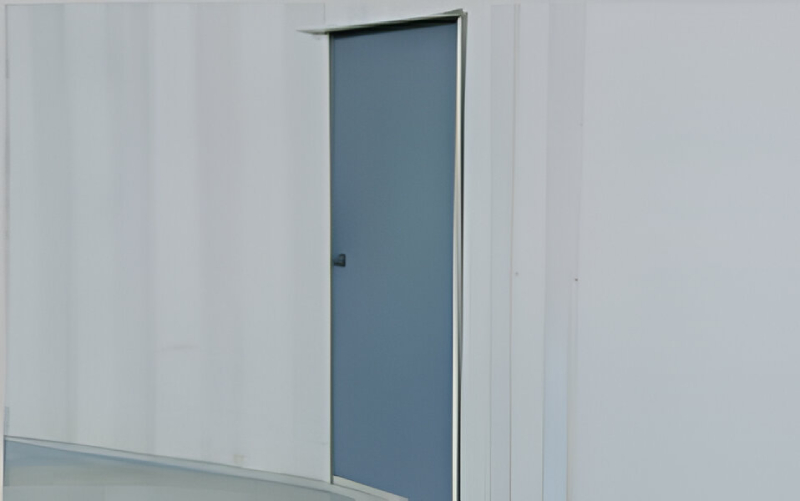

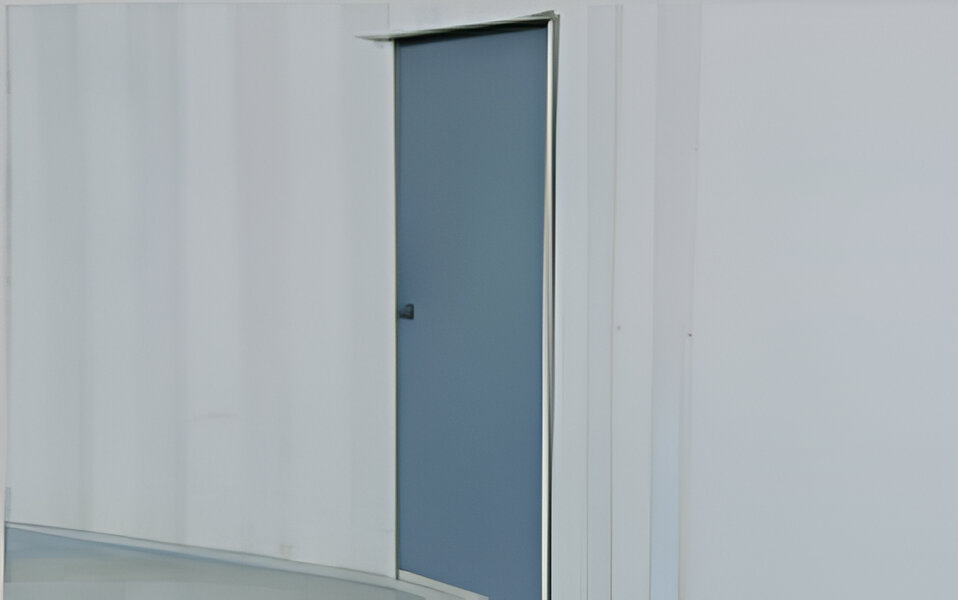

915mm x 1830mm wide x 2134mm high made of 20 gauge electro galvanized steel with a core of polyurethane insulation. Door fixture is provided.

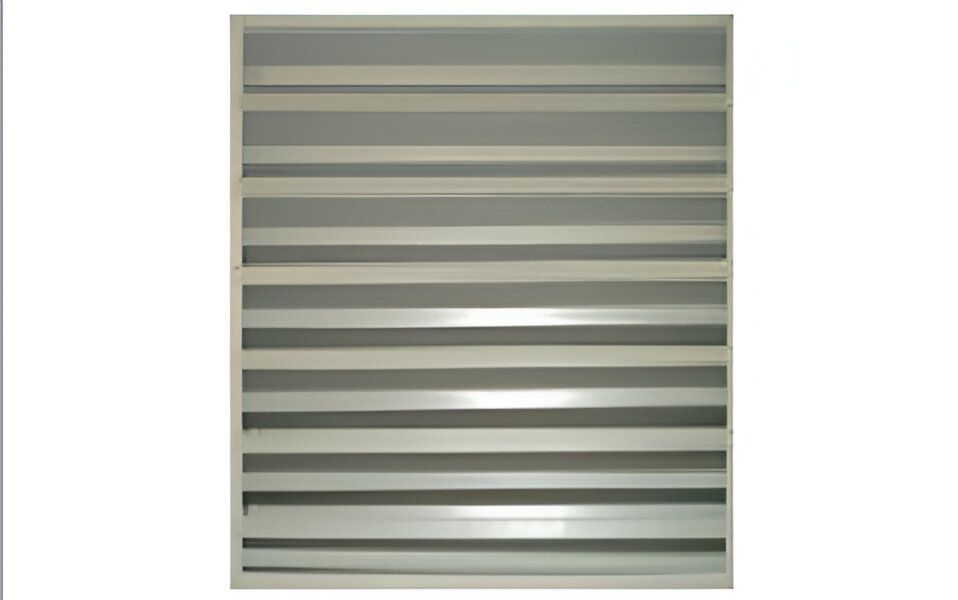

A louver is a frame containing adjustable overlapping blades which allow air flow and also block sunlight entry. The standard size available is 1m x 1m, which also incorporates insect screen, hand crank and blade adjustment lever.

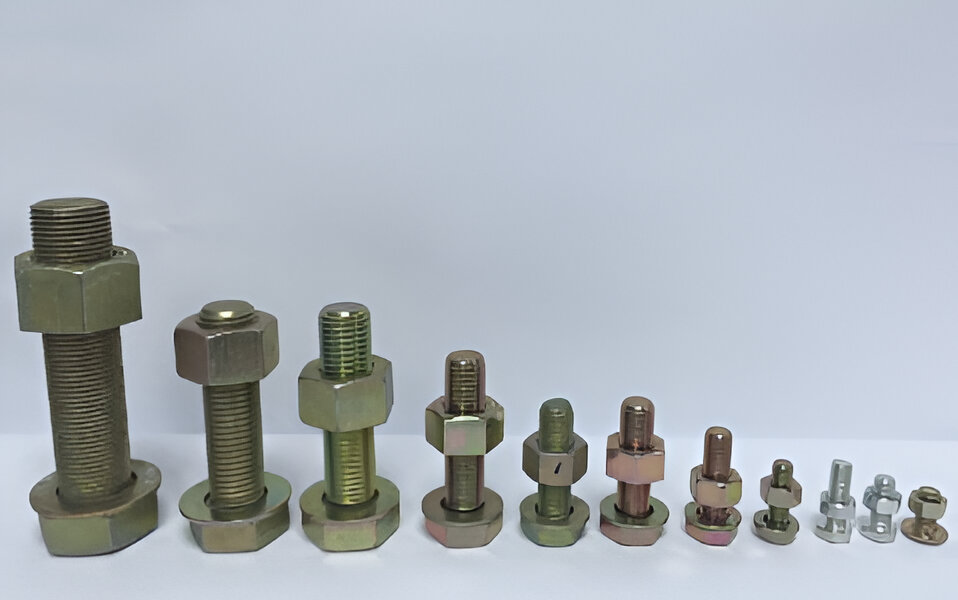

Fasteners are of self-drilling screws No. 14, made of steel wire and EPDM bonded washers. The fasteners are either plain carbon or stainless steel type.

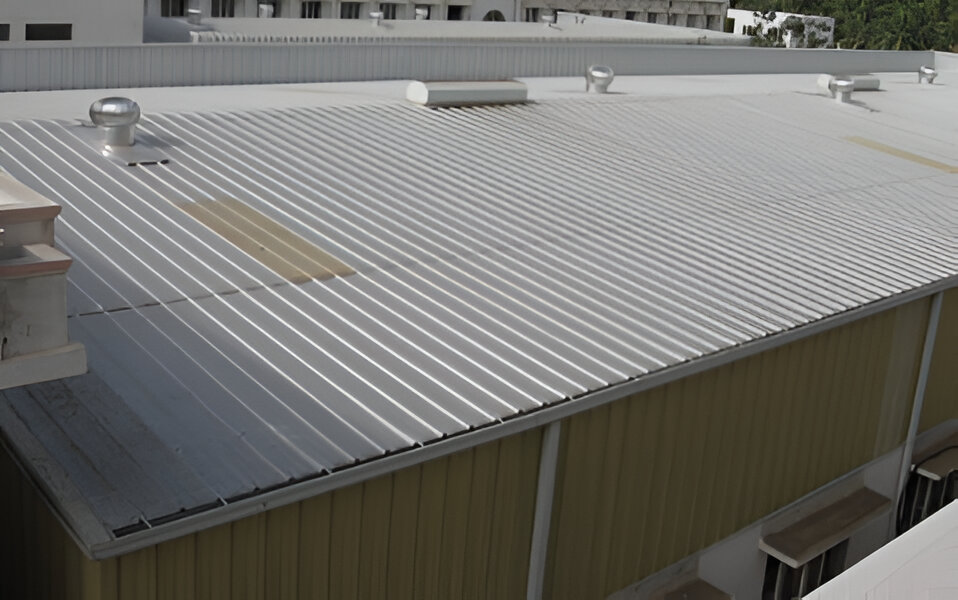

Swathi Build Tech 'C' whirlwind low silhouette extract Ventilator with spun aluminum non-return shutter and one piece base and throat. Provides ventilation when there is no wind and is placed on top of the roof panels.

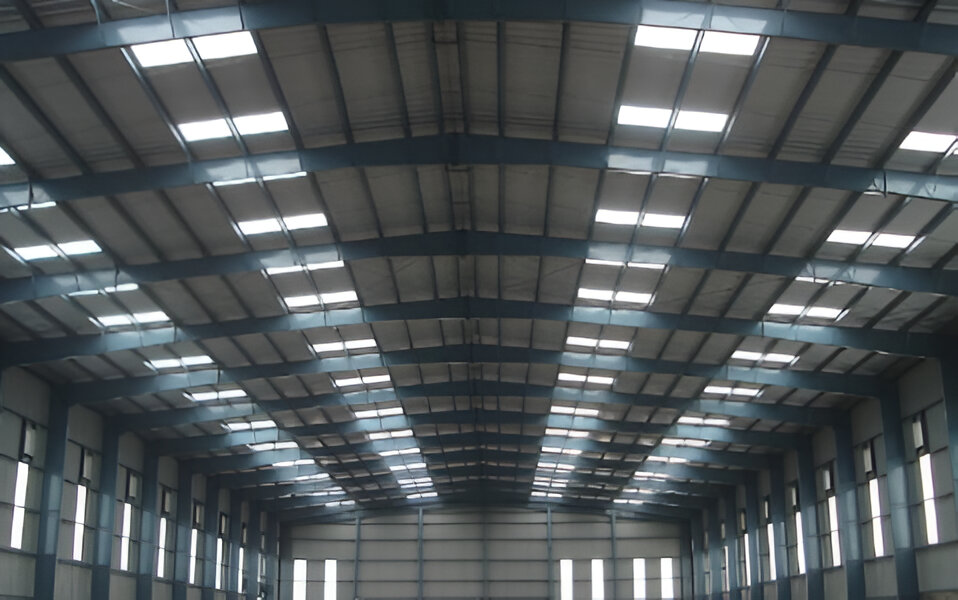

Made of translucent GRP to match Swathi Build Tech rib and wall panels, with an estimated light transmitting capacity of 60%.

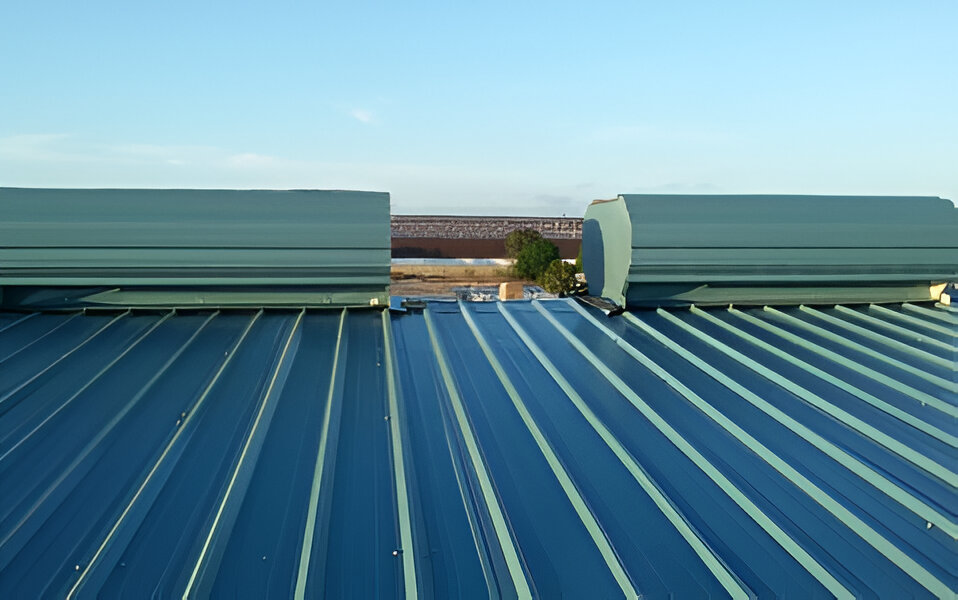

This is a gravity-type Ventilator which is provided with a bird screen and mechanical controlled damper. Allows natural ventilation of the building.

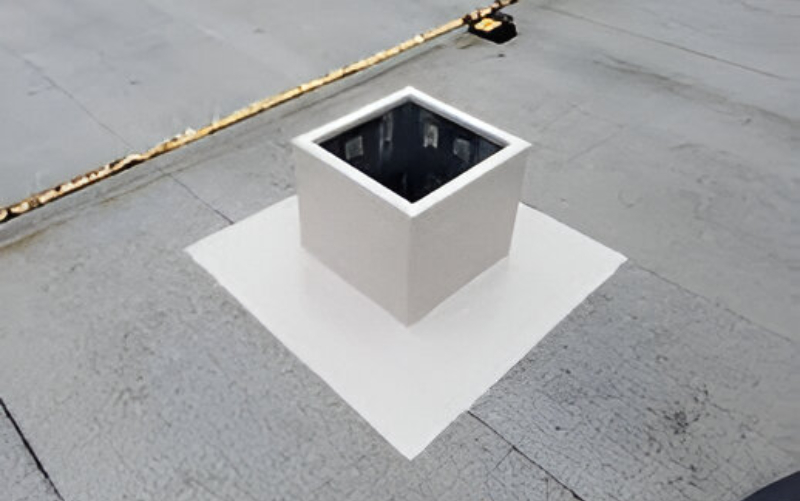

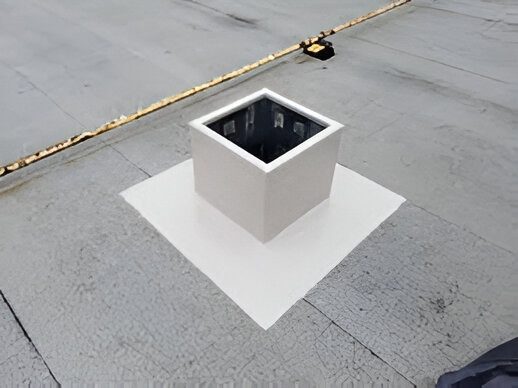

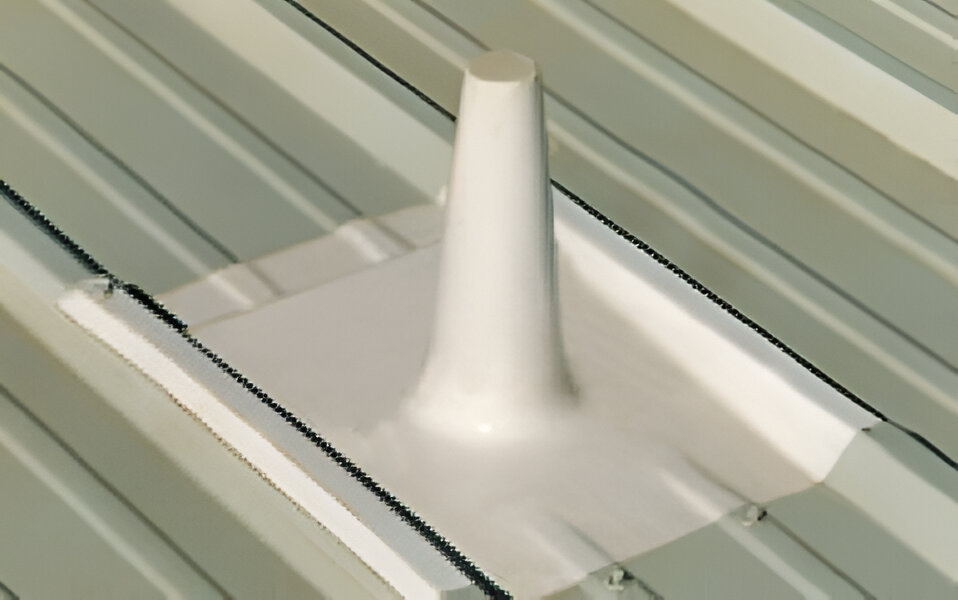

These are enclosures for pipes and stacks projecting from the roof. They allow for safe working on the roof.
These are enclosures for ducts or other roof projections made up of reinforced plastic fitting Swathi Build Tech rib roof panels.

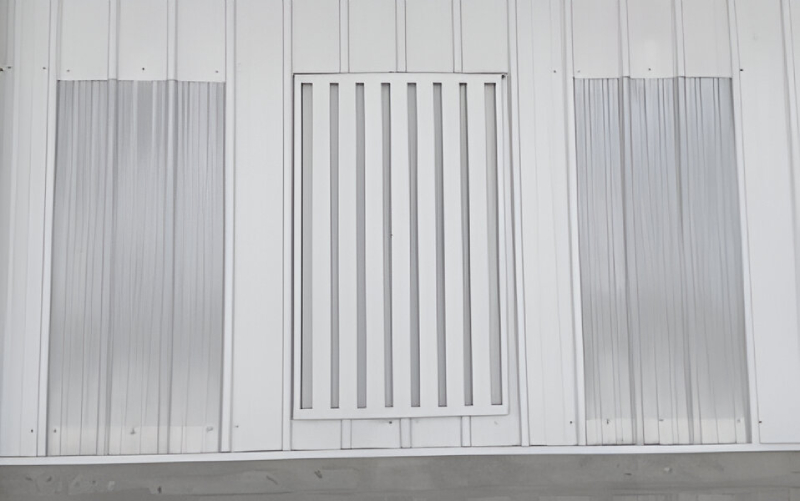

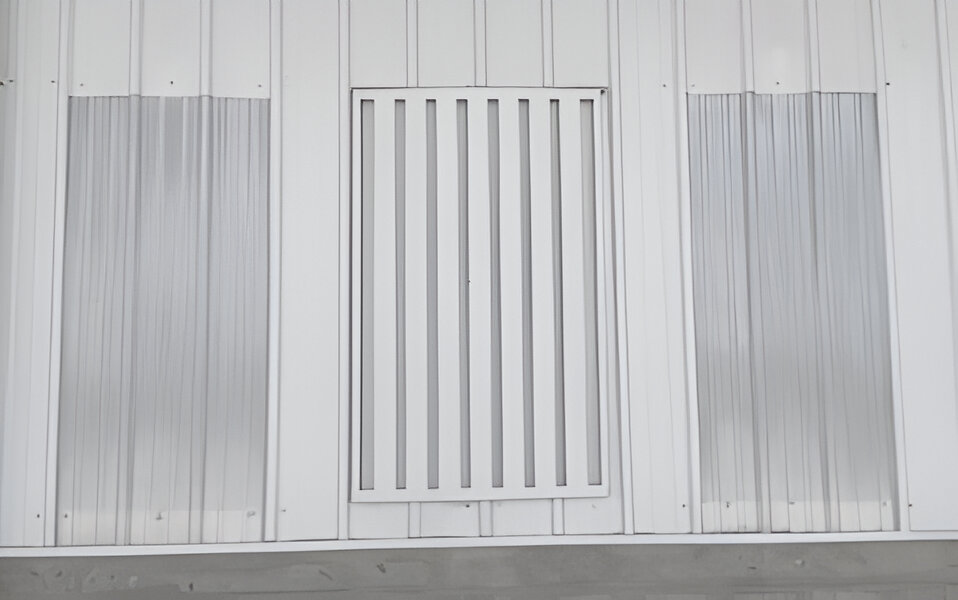

This Louver consists of different form of flashings arrangements in a predetermined manner in order to create a sand trap. The dual advantage of the sand trap louver is not only to help with natural ventilation but also to act as sand trap.

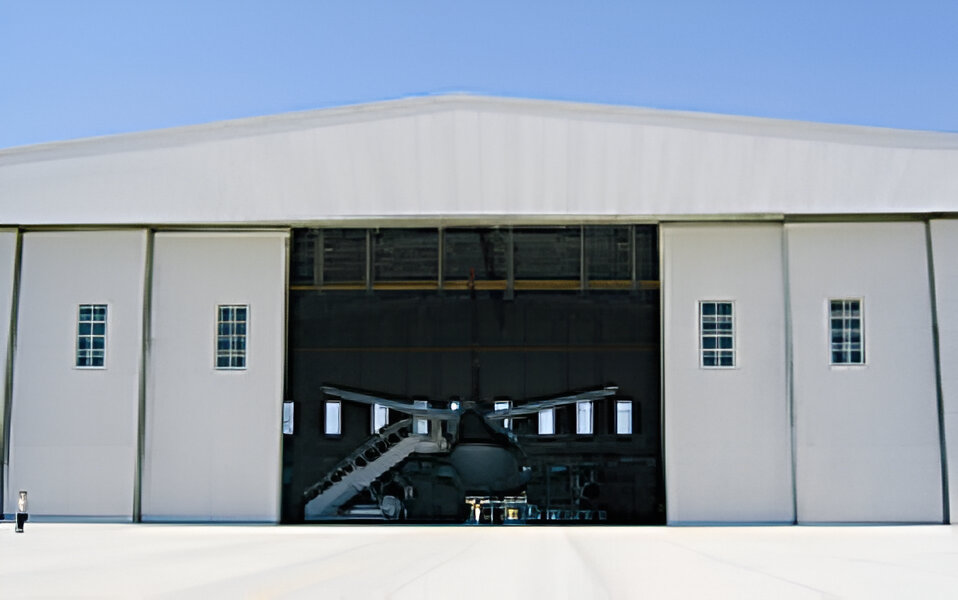

Swathi Build Tech provides solutions for special applications such as aircraft hangars, customized hangar doors and framing, customized support systems for special equipment and maintenance cranes.

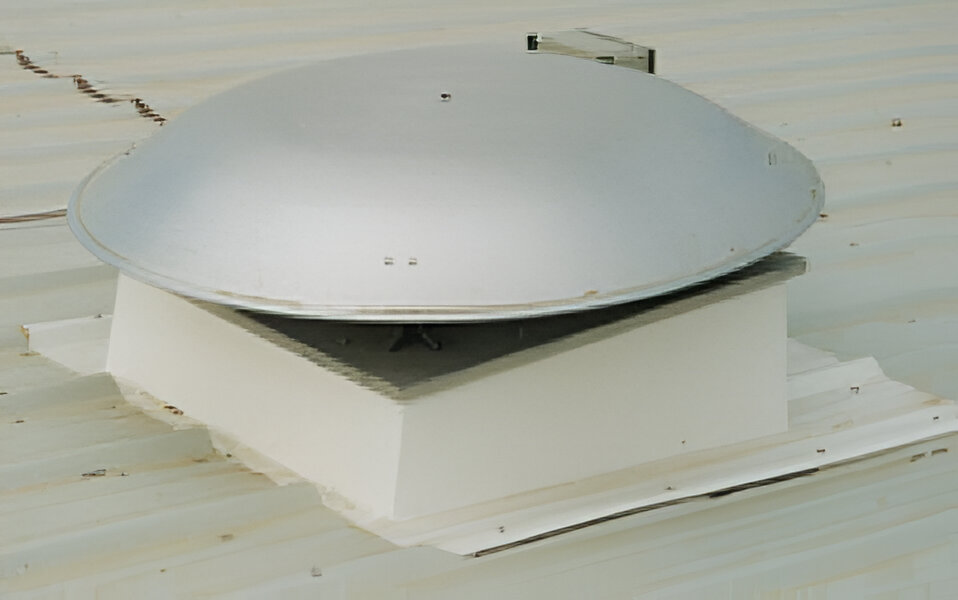

Swathi Build Tech 'C' whirlwind low silhouette extract Ventilator with spun aluminium non-return shutter and one-piece base and throat. Mounted on GRP roof crub moulded to suit Swathi Build Tech roof panels.
